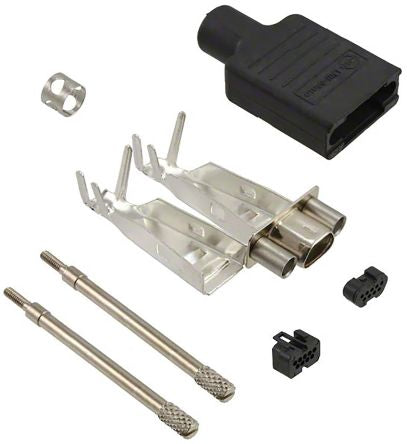

Molex CMD Series 1.27mm Pitch Straight Micro Miniature D Crimp Connector, Socket, 9 Pin [834219014]; 126-6373
by Molex
0₫
Mã kho: 1266373
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 1.27mm |
| Termination Method | Crimp |
| Current Rating | 1.0A |
| Housing Material | Liquid Crystal Polymer |
| Voltage Rating | 600.0 V |
| Length | 19.93mm |
| Width | 34.79mm |
| Depth | 8.38mm |
| Dimensions | 19.93 x 34.79 x 8.38mm |
| Minimum Operating Temperature | -40.0°C |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Gold |
| Contact Size | 9 |
| Series | CMD |
