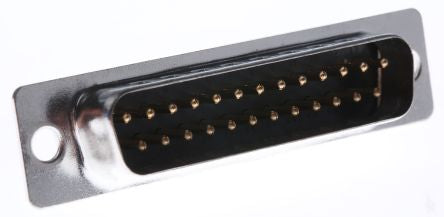

MH Connectors MHDB Series Cable Mount, 25 Pin Standard D-Sub D-sub Connector Plug, Shell Size B [MHDB25SP]; 787-3868
0₫
Mã kho: 7873868
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.77mm |
| D Connector Type | Standard D-Sub |
| D-Sub Shell Size | B |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 250 V |
| Length | 53.03mm |
| Width | 12.55mm |
| Depth | 10.8mm |
| Dimensions | 53.03 x 12.55 x 10.8mm |
| Contact Plating | Gold over Nickel |
| Minimum Operating Temperature | -55.0°C |
| Series | MHDB |
| Maximum Operating Temperature | +105°C |
| Contact Material | Brass |
