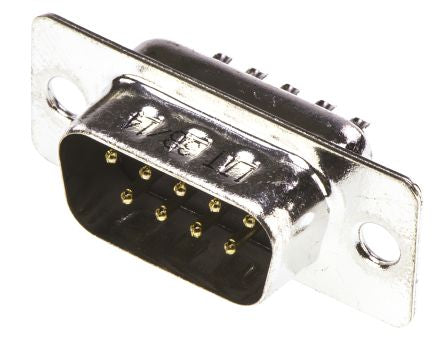

ITT Cannon ZD* Series Panel Mount, 9 Pin Standard D-Sub D-sub Connector Plug, Shell Size E [119998-2830]; 171-1389
by ITT Cannon
0₫
Mã kho: 1711389
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.77mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | E |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Length | 30.89mm |
| Width | 12.55mm |
| Minimum Operating Temperature | -55.0°C |
| Series | ZD* |
| Maximum Operating Temperature | +105°C |
| Contact Plating | Gold over Nickel |
| Contact Material | Brass |
