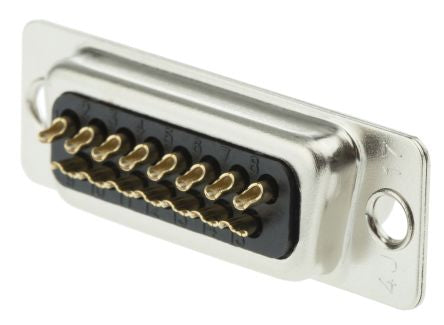

Hirose HD Series Panel Mount, 15 Pin Standard D-Sub D-sub Connector Socket, Shell Size A [HDAB-15S(05)]; 608-0513
by Hirose
0₫
Mã kho: 6080513
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| D Connector Type | Standard D-Sub |
| D-Sub Shell Size | A |
| Termination Method | Solder |
| Current Rating | 3.0A |
| Housing Material | Steel |
| Voltage Rating | 400 V ac |
| Length | 39.14mm |
| Width | 12.55mm |
| Depth | 14.92mm |
| Dimensions | 39.14 x 12.55 x 14.92mm |
| Contact Material | Phosphor Bronze |
| Minimum Operating Temperature | -40.0°C |
| Contact Plating | Gold |
| Series | HD |
| Maximum Operating Temperature | +85°C |
