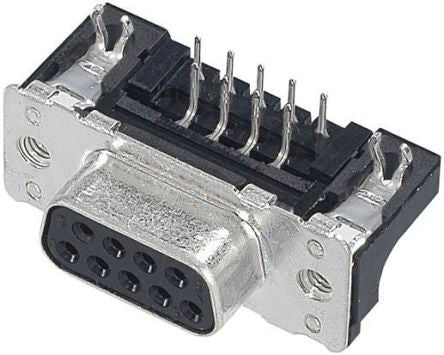

Harting 9 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.74mm Pitch [09661526616]; 692-7914
by HARTING
0₫
Mã kho: 6927914
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.74mm |
| Termination Method | Solder |
| Mounting Hardware | Boardlocks, 4-40 UNC Threaded Inserts |
| Current Rating | 7.5A |
| Housing Material | Steel |
| Length | 31.2mm |
| Width | 12.5mm |
| Contact Plating | Gold |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55.0°C |
| Contact Material | Copper Alloy |
