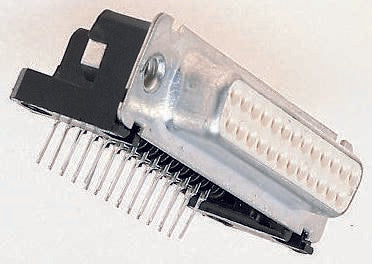

Cinch FD Series, 25 Way Right Angle Through Hole Filtered PCB D-Sub Connector Plug, 2.76mm Pitch [RS000470000EL1K]; 450-629
by Cinch
0₫
Mã kho: 450629
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.76mm |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | PET |
| Voltage Rating | 200 V ac/dc |
| Length | 53.04mm |
| Width | 12.55mm |
| Minimum Operating Temperature | -25.0°C |
| Series Number | 450 |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +125°C |
| Series | FD |
