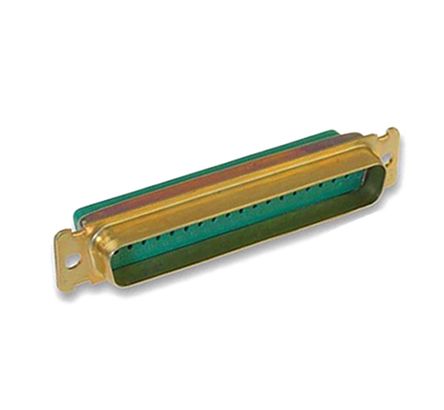

Cinch Connectors M24308 Series Panel Mount, 37 Pin Standard D-Sub D-sub Connector Socket, Shell Size C [M24308/1-4F]; 885-6943
0₫
Mã kho: 8856943
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 37 |
Gender | Female |
Body Orientation | Straight |
Mounting Type | Panel Mount |
D Connector Type | Standard D-Sub |
D-Sub Shell Size | C |
Termination Method | Solder |
Current Rating | 5.0A |
Housing Material | Steel |
Voltage Rating | 1.25 kV |
Length | 69.32mm |
Width | 10.92mm |
Depth | 12.55mm |
Dimensions | 69.32 x 10.92 x 12.55mm |
Maximum Operating Temperature | +125°C |
Contact Plating | Gold over Copper, Gold over Nickel |
Minimum Operating Temperature | -65.0°C |
Series | M24308 |
Contact Material | Phosphor Bronze |
