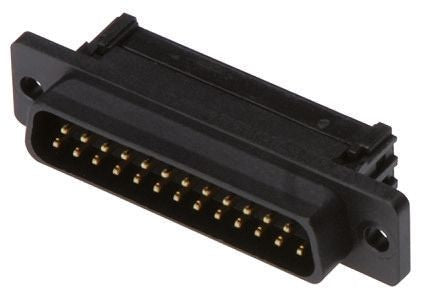

ASSMANN WSW 2.54mm Pitch 25 Way IDC D-sub Connector, Plug, Plastic Shell [A-DSF 25LPIII/FP]; 674-0886
by ASSMANN WSW
0₫
Mã kho: 6740886
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Cable Mount |
| Pitch | 2.54mm |
| Termination Method | IDC |
| Current Rating | 5.0A |
| Housing Material | Plastic |
| Length | 53.04mm |
| Width | 17.38mm |
| Depth | 12.55mm |
| Dimensions | 53.04 x 17.38 x 12.55mm |
| Contact Plating | Gold over Nickel |
| Contact Material | Brass |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55.0°C |
