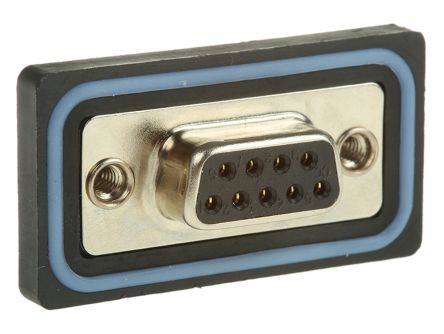

ASSMANN WSW A-DF Series Panel Mount, 9 Pin Waterproof D-Sub D-sub Connector Socket, Shell Size E [A-DF 09 LL-WP]; 674-1022
by ASSMANN WSW
0₫
Mã kho: 6741022
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.77mm |
| D Connector Type | Waterproof D-Sub |
| D-Sub Shell Size | E |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | Metal |
| Voltage Rating | 250 V ac |
| Length | 39.4mm |
| Width | 7.0mm |
| Depth | 21.1mm |
| Dimensions | 39.4 x 7 x 21.1mm |
| Series | A-DF |
| Maximum Operating Temperature | +105°C |
| Contact Material | Brass |
| Contact Plating | Gold, Nickel |
| Minimum Operating Temperature | -40.0°C |
