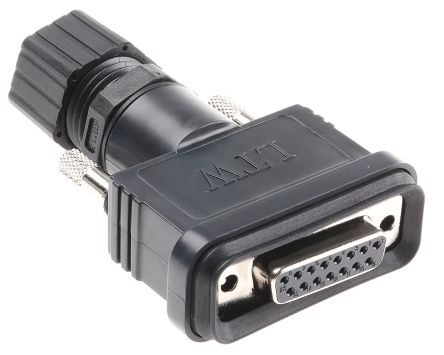

Amphenol Socapex SDB Series Cable Mount, 15 Pin Waterproof D-Sub D-sub Connector Socket, Shell Size A [SDB-15BFFA-SL7001]; 720-3089
by Amphenol
0₫
Mã kho: 7203089
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| D Connector Type | Waterproof D-Sub |
| D-Sub Shell Size | A |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 500 V ac |
| Length | 50.6mm |
| Width | 32.3mm |
| Depth | 21.0mm |
| Dimensions | 50.6 x 32.3 x 21mm |
| Contact Plating | Gold |
| Maximum Operating Temperature | +105°C |
| Series | SDB |
| Minimum Operating Temperature | -40.0°C |
| Contact Material | Brass |
