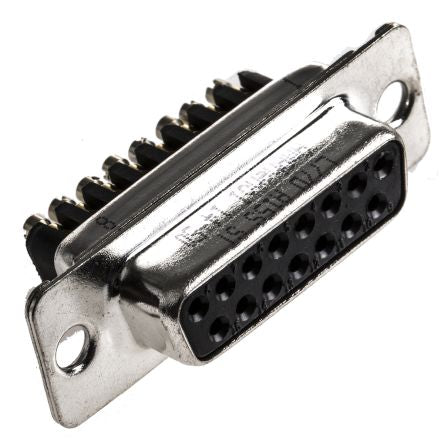

Amphenol Socapex L77D Series 2.74mm Pitch 15 Way Straight Female Screw Terminal D-sub Connector [L77D A15S ST]; 170-2603
by Amphenol
0₫
Mã kho: 1702603
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.74mm |
| Termination Method | Screw Terminal |
| Current Rating | 7.5A |
| Housing Material | Glass Fibre Reinforced Nylon |
| Voltage Rating | 300.0 V |
| Length | 38.76mm |
| Width | 12.17mm |
| Depth | 18.55mm |
| Minimum Operating Temperature | -55.0°C |
| Contact Plating | Gold over Nickel |
| Maximum Operating Temperature | +85°C |
| Series | L77D |
| Contact Material | Brass |
