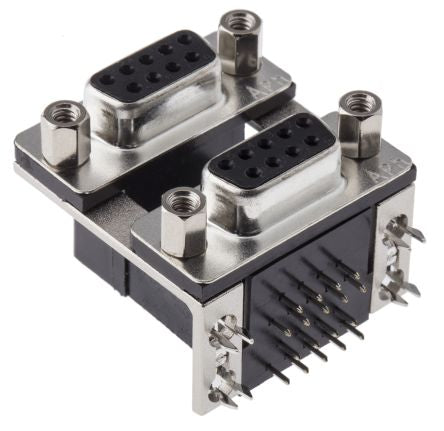

Amphenol Socapex L17H Series, 9 Way Right Angle Through Hole Stacked PCB D-Sub Connector Socket, 2.77mm Pitch [L17H2220131]; 170-2624
by Amphenol
0₫
Mã kho: 1702624
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.77mm |
| Termination Method | Solder |
| Mounting Hardware | Boardlocks, 4-40 UNC Female Screwlocks |
| Current Rating | 3.0A |
| Housing Material | Steel |
| Voltage Rating | 250.0 V |
| Length | 30.84mm |
| Width | 25.7mm |
| Depth | 31.6mm |
| Dimensions | 30.84 x 25.7 x 31.6mm |
| Contact Plating | Gold over Nickel |
| Maximum Operating Temperature | +125°C |
| Series | L17H |
| Minimum Operating Temperature | -55.0°C |
| Contact Material | Phosphor Bronze |
