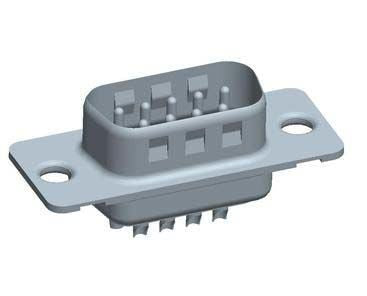

Amphenol FCI DP Series Plug-In Mount, 9 Pin Standard D-Sub D-sub Connector Plug, Shell Size E [DEP09P065TXLF]; 137-2486
by Amphenol FCI
0₫
Mã kho: 1372486
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Plug-In Mount |
| Pitch | 2.74mm |
| D Connector Type | Standard D-Sub |
| D-Sub Shell Size | E |
| Termination Method | Solder |
| Current Rating | 7.5A |
| Housing Material | Thermoplastic |
| Voltage Rating | 1.0 kV |
| Length | 30.43mm |
| Width | 12.17mm |
| Depth | 10.99mm |
| Dimensions | 30.43 x 12.17 x 10.99mm |
| Series | DP |
| Contact Plating | Gold, Nickel |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55.0°C |
| Contact Material | Copper Alloy |
