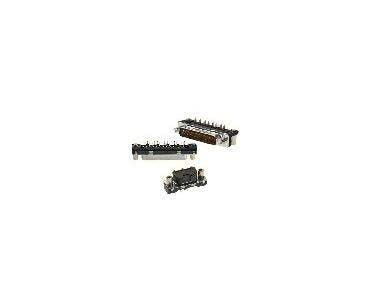

Amphenol FCI D Series, 9 Way Right Angle Plug-In Mount D-sub Connector Socket, 2.54mm Pitch, with Screw [D09S13A6RX12LF]; 137-2711
by Amphenol FCI
0₫
Mã kho: 1372711
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Plug-In Mount |
| Pitch | 2.54mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | E |
| Mounting Hardware | Screw |
| Mixed Contact Layout | 9W2 |
| Current Rating | 5.0A |
| Housing Material | PBT |
| Voltage Rating | 300.0 V |
| Length | 30.81mm |
| Width | 7.89mm |
| Depth | 10.05mm |
| Dimensions | 30.81 x 7.89 x 10.05mm |
| Maximum Operating Temperature | +125°C |
| Series | D |
| Minimum Operating Temperature | -55.0°C |
| Contact Plating | Gold over Nickel |
| Contact Material | Phosphor Bronze |
