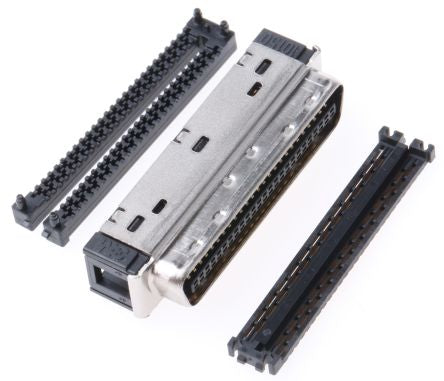

3M 101 Series 1.27mm Pitch 50 Way Mini D Ribbon IDC Connector, Plug, Steel Shell [10150-6000EC]; 770-9010
by 3M
0₫
Mã kho: 7709010
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 50 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 1.27mm |
| Termination Method | IDC |
| Current Rating | 1.0A |
| Housing Material | Steel |
| Length | 41.1mm |
| Width | 12.7mm |
| Depth | 9.1mm |
| Dimensions | 41.1 x 12.7 x 9.1mm |
| Series | 101 |
| Maximum Operating Temperature | +85°C |
| Contact Plating | Gold over Nickel |
| Minimum Operating Temperature | -20.0°C |
| Contact Material | Beryllium Copper |
