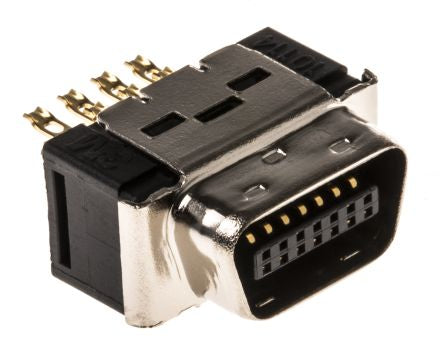

3M 101 Series Cable Mount, 14 Pin D-sub Connector Plug [10114-3000PE]; 515-7460
by 3M
0₫
Mã kho: 5157460
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 14 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.54mm |
| Termination Method | Solder |
| Current Rating | 1.0A |
| Housing Material | Steel |
| Length | 18.2mm |
| Width | 9.1mm |
| Depth | 19.3mm |
| Minimum Operating Temperature | -55.0°C |
| Contact Plating | Gold over Nickel |
| Contact Material | Copper Alloy |
| Series | 101 |
| Maximum Operating Temperature | +105°C |
