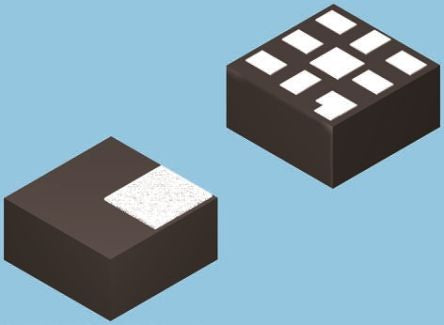

ON Semiconductor FPF2700MPX, Current Limiting Switch, 3.5A 8-Pin, MLP [FPF2700MPX]; 124-1411
0₫
Mã kho: 1241411
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Maximum Input Voltage | 36 V |
| Minimum Input Voltage | 2.8 V |
| Current Limit | 0.4 → 2A |
| Maximum Continuous Current per Channel | 3.5A |
| Mounting Type | Surface Mount |
| Package Type | MLP |
| Pin Count | 8 |
| Dimensions | 3 x 3 x 0.75mm |
| Length | 3mm |
| Width | 3mm |
| Height | 0.75mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
