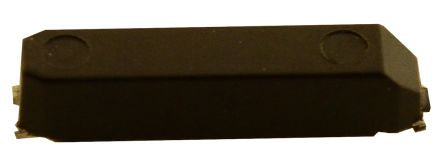

RS PRO 32.768kHz Crystal ±10ppm SMT 4-Pin 6.7 x 1.4 x 1.3mm; 144-2318
by RS PRO
0₫
Mã kho: 1442318
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 7pF |
| Package Type | SMT |
| Pin Count | 4 |
| Length | 6.7mm |
| Width | 1.4mm |
| Height | 1.3mm |
| Dimensions | 6.7 x 1.4 x 1.3mm |
| Frequency Tolerance | ±10ppm |
| Series Resistance | 65kΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
