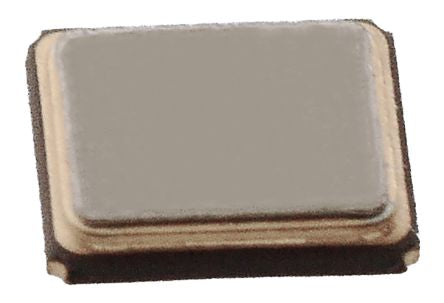

RS PRO 32MHz Crystal ±10ppm SMT 4-Pin 2.5 x 2 x 0.5mm; 144-2300
by RS PRO
0₫
Mã kho: 1442300
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 9pF |
| Package Type | SMT |
| Pin Count | 4 |
| Length | 2.5mm |
| Width | 2mm |
| Height | 0.5mm |
| Dimensions | 2.5 x 2 x 0.5mm |
| Frequency Tolerance | ±10ppm |
| Frequency Stability | ±10ppm |
| Series Resistance | 50Ω |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | 60°C |
