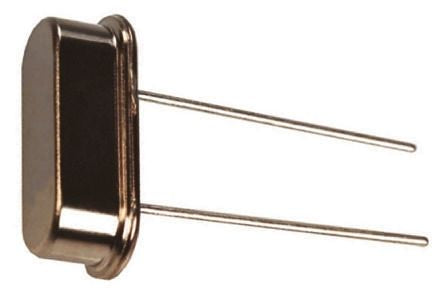

RALTRON 9.8304MHz Crystal ±30ppm HC-49-S 2-Pin [AS-9.8304-18]; 693-6958
by RALTRON
0₫
Mã kho: 6936958
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 9.8304MHz |
| Mounting Type | Through Hole |
| Load Capacitance | 18pF |
| Package Type | HC-49-S |
| Pin Count | 2 |
| Length | 11.35mm |
| Width | 5mm |
| Height | 3.5mm |
| Dimensions | 11.35 x 5 x 3.5mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±50ppm |
| Series Resistance | 60Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
