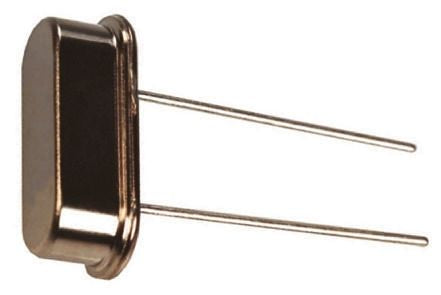

RALTRON 11.0592MHz Crystal ±50ppm HC-49-S 3-Pin [AS-11.0592-18]; 693-6961
by RALTRON
0₫
Mã kho: 6936961
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 11.0592MHz |
| Mounting Type | Through Hole |
| Load Capacitance | 18pF |
| Package Type | HC-49-S |
| Pin Count | 3 |
| Length | 11.35mm |
| Width | 5mm |
| Height | 3.5mm |
| Dimensions | 11.35 x 5 x 3.5mm |
| Frequency Tolerance | ±50ppm |
| Frequency Stability | ±100ppm |
| Series Resistance | 50Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
