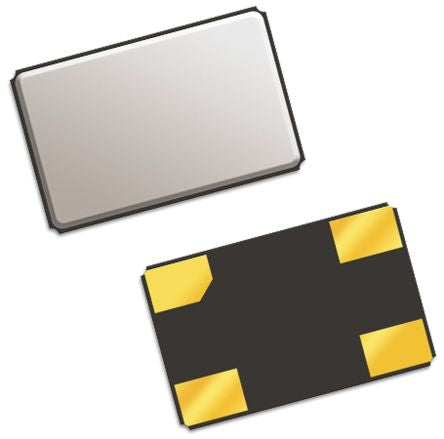

QT Quarztechnik 48MHz Crystal ±10ppm SMD 4-Pin 5.2 x 3.4 x 1mm [QTC5A48.0000FDT1I20R]; 815-0330
0₫
Mã kho: 8150330
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 48MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 5.2mm |
| Width | 3.4mm |
| Height | 1mm |
| Dimensions | 5.2 x 3.4 x 1mm |
| Frequency Tolerance | ±10ppm |
| Frequency Stability | ±20ppm |
| Series Resistance | 100Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
