![QT Quarztechnik QTC3216.0000FDT1I20R 8150349](http://nguyenxuong.com/cdn/shop/products/R8150349-01_17578231-5833-483e-b220-f00672280b4b_444x442.jpg?v=1594236799)

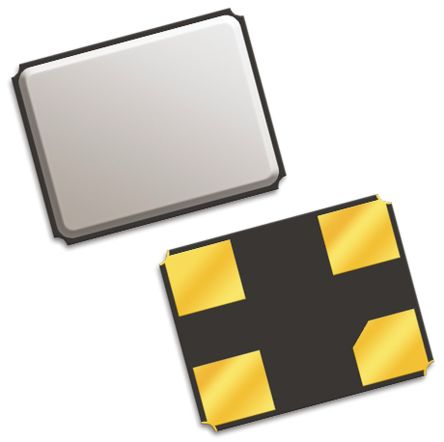

QT Quarztechnik 16MHz Crystal ±10ppm SMD 4-Pin 3.4 x 2.7 x 0.75mm [QTC3216.0000FDT1I20R]; 815-0349
0₫
Mã kho: 8150349
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Standard Frequency | 16MHz |
Mounting Type | Surface Mount |
Load Capacitance | 18pF |
Package Type | SMD |
Pin Count | 4 |
Length | 3.4mm |
Width | 2.7mm |
Height | 0.75mm |
Dimensions | 3.4 x 2.7 x 0.75mm |
Frequency Tolerance | ±10ppm |
Frequency Stability | ±20ppm |
Series Resistance | 120Ω |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | 85°C |
