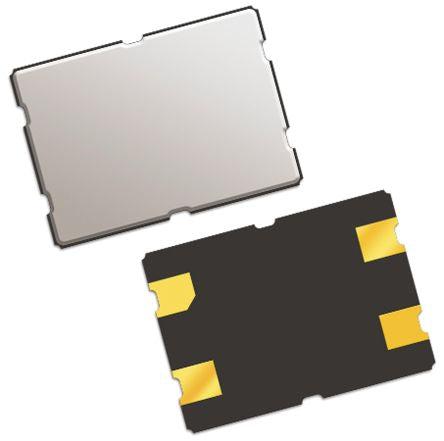

QANTEK 7.3728MHz Crystal ±10ppm SMD 4-Pin 7 x 5 x 1mm [QC7A7.37280F12B12R]; 173-4511
by QANTEK
0₫
Mã kho: 1734511
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 7.3728MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 7mm |
| Width | 5mm |
| Height | 1mm |
| Dimensions | 7 x 5 x 1mm |
| Frequency Tolerance | ±10ppm |
| Frequency Stability | ±20ppm |
| Series Resistance | 110Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
