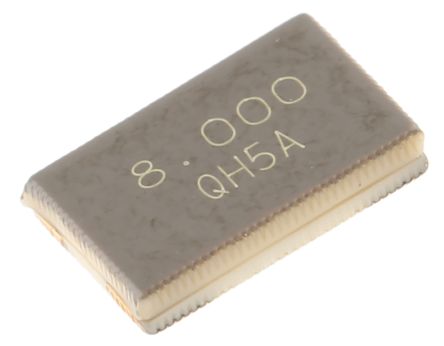

QANTEK 8MHz Crystal ±20ppm SMD 4-Pin 5 x 3.2 x 1.1mm [QC5CA8.00000F12B23R]; 813-6031
by QANTEK
0₫
Mã kho: 8136031
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 8MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 5mm |
| Width | 3.2mm |
| Height | 1.1mm |
| Dimensions | 5 x 3.2 x 1.1mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±30ppm |
| Series Resistance | 100Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
