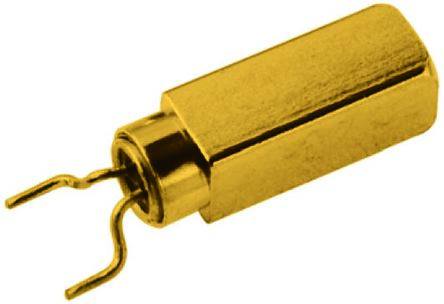

Micro Crystal 32.768kHz Crystal ±20ppm SMD 2-Pin 5 x 1.4 x 1.4mm [MS3V-T1R 32.768KHZ 12.5PF +-20PPM]; 173-5694
0₫
Mã kho: 1735694
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12.5pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 5mm |
| Width | 1.4mm |
| Height | 1.4mm |
| Dimensions | 5 x 1.4 x 1.4mm |
| Frequency Tolerance | ±20ppm |
| Series Resistance | 65kΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
