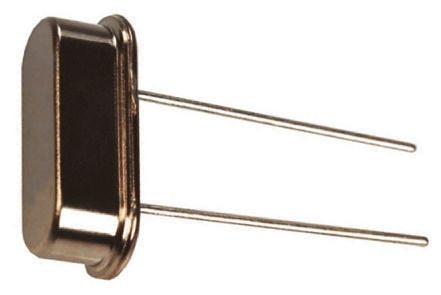

MERCURY 16.384MHz Crystal ±30ppm HC-49-US 2-Pin [HUS-16.384-18-30/50/4085]; 672-0292
by MERCURY
0₫
Mã kho: 6720292
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 16.384MHz |
| Mounting Type | Through Hole |
| Load Capacitance | 18pF |
| Package Type | HC-49-US |
| Pin Count | 2 |
| Length | 10.7mm |
| Width | 4.3mm |
| Height | 3.5mm |
| Dimensions | 10.7 x 4.3 x 3.5mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±50ppm |
| Series Resistance | 40Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
