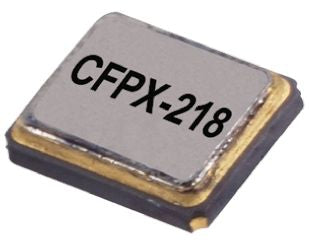

IQD 24.576MHz Crystal ±30ppm SMD 4-Pin 2.5 x 2 x 0.6mm [LF XTAL052183R500]; 735-0611
by IQD
0₫
Mã kho: 7350611
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 24.576MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 2.5mm |
| Width | 2mm |
| Height | 0.6mm |
| Dimensions | 2.5 x 2 x 0.6mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±50ppm |
| Series Resistance | 100Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
