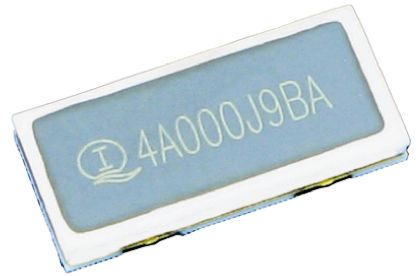

Interquip 3.5795MHz Crystal ±30ppm SMD 4-Pin 10 x 4.5 x 1.6mm [5HEA03579123TF80Q3]; 728-8355
by Interquip
0₫
Mã kho: 7288355
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 3.5795MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 10mm |
| Width | 4.5mm |
| Height | 1.6mm |
| Dimensions | 10 x 4.5 x 1.6mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±30ppm |
| Series Resistance | 150Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
