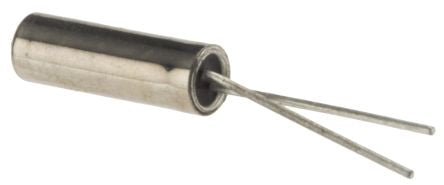

Fox Electronics 32.768kHz Crystal ±20ppm Cylindrical 2-Pin 6 x 2 x 2mm [NC26LF-327]; 173-4289
0₫
Mã kho: 1734289
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Through Hole |
| Load Capacitance | 12.5pF |
| Package Type | Cylindrical |
| Pin Count | 2 |
| Length | 6mm |
| Width | 2mm |
| Height | 2mm |
| Dimensions | 6 x 2 x 2mm |
| Frequency Tolerance | ±20ppm |
| Series Resistance | 50kΩ |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 60°C |
