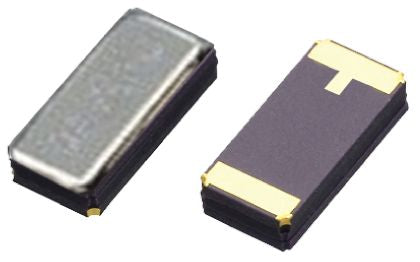

Euroquartz 32.768kHz Crystal ±20ppm SMD 2-Pin 4.8 x 1.9 x 0.8mm [EQ160-32.768-12.5]; 173-5821
by Euroquartz
0₫
Mã kho: 1735821
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12.5pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 4.8mm |
| Width | 1.9mm |
| Height | 0.8mm |
| Dimensions | 4.8 x 1.9 x 0.8mm |
| Frequency Tolerance | ±20ppm |
| Series Resistance | 80kΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
