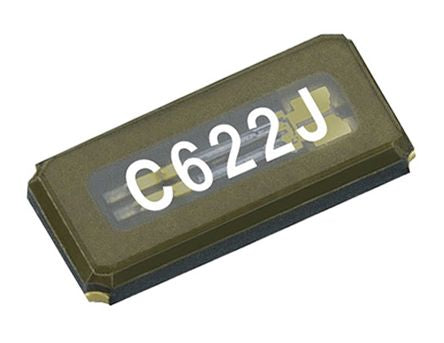

Epson 32.768kHz Crystal Unit ±20ppm FC-135R 2-Pin 3.2 x 1.5 x 0.8mm [X1A000141000212]; 173-2295
by EPSON
0₫
Mã kho: 1732295
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 9pF |
| Package Type | FC-135R |
| Pin Count | 2 |
| Length | 3.2mm |
| Width | 1.5mm |
| Height | 0.8mm |
| Dimensions | 3.2 x 1.5 x 0.8mm |
| Frequency Tolerance | ±20ppm |
| Series Resistance | 50kΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
