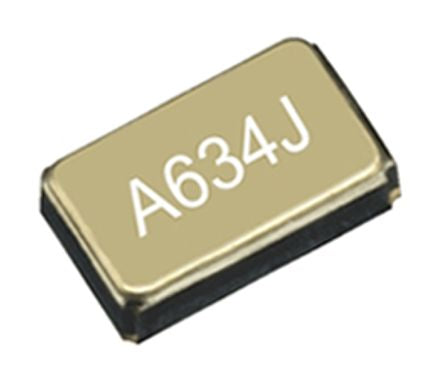

Epson 32.768kHz Crystal Unit ±20ppm FC1610AN 2-Pin 1.6 x 1 x 0.5mm [X1A000121000512]; 904-7875
by EPSON
0₫
Mã kho: 9047875
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12.5pF |
| Package Type | FC1610AN |
| Pin Count | 2 |
| Length | 1.6mm |
| Width | 1mm |
| Height | 0.5mm |
| Dimensions | 1.6 x 1 x 0.5mm |
| Frequency Tolerance | ±20ppm |
| Series Resistance | 90kΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
