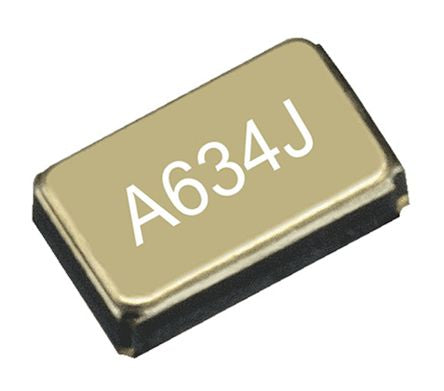

Epson 32.768kHz Crystal Unit ±30ppm FC-12M 2-Pin 2.05 x 1.2 x 0.6mm [X1A000061000212]; 173-2311
by EPSON
0₫
Mã kho: 1732311
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12.5pF |
| Package Type | FC-12M |
| Pin Count | 2 |
| Length | 2.05mm |
| Width | 1.2mm |
| Height | 0.6mm |
| Dimensions | 2.05 x 1.2 x 0.6mm |
| Frequency Tolerance | ±30ppm |
| Series Resistance | 65 → 90kΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
