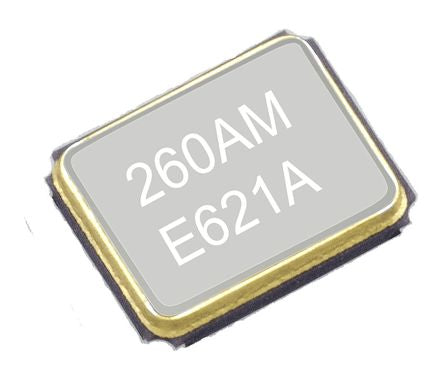

Epson 25MHz Crystal Unit ±10ppm FA-20H 4-Pin [Q24FA20H0034412]; 904-7465
by EPSON
0₫
Mã kho: 9047465
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 25MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 9pF |
| Package Type | FA-20H |
| Pin Count | 4 |
| Length | 2.5mm |
| Width | 2mm |
| Height | 0.55mm |
| Dimensions | 2.5 x 2 x 0.55mm |
| Frequency Tolerance | ±10ppm |
| Series Resistance | 80Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
