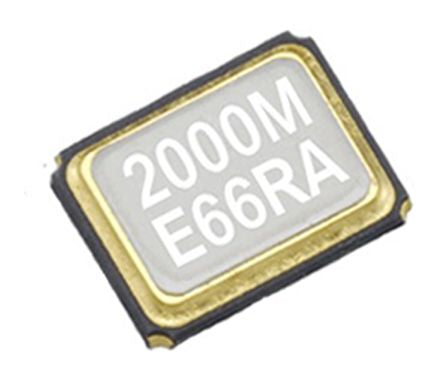

Epson 26MHz Crystal Unit ±10ppm FA-128 4-Pin 2 x 1.6 x 0.5mm [Q22FA1280002012]; 173-2377
by EPSON
0₫
Mã kho: 1732377
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 26MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 9pF |
| Package Type | FA-128 |
| Pin Count | 4 |
| Length | 2mm |
| Width | 1.6mm |
| Height | 0.5mm |
| Dimensions | 2 x 1.6 x 0.5mm |
| Frequency Tolerance | ±10ppm |
| Series Resistance | 80Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
