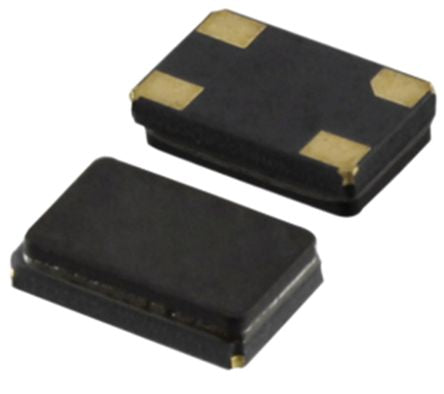

CTS 12MHz Crystal Unit Glass Seal 2-Pin 5 x 3.2 x 1.35mm [445I35A12M00000]; 178-2507
by CTS
0₫
Mã kho: 1782507
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 12MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 10pF |
| Package Type | Glass Seal |
| Pin Count | 2 |
| Length | 5mm |
| Width | 3.2mm |
| Height | 1.35mm |
| Dimensions | 5 x 3.2 x 1.35mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±50ppm |
| Series Resistance | 50Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
