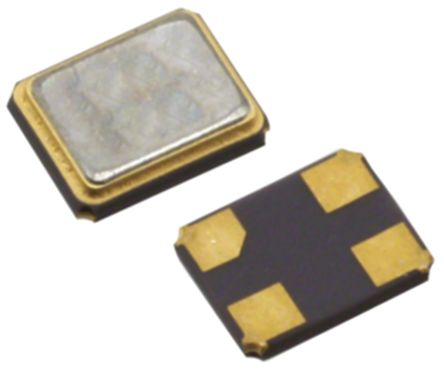

CTS 24MHz Crystal Unit SMD 4-Pin 1.6 x 1.2 x 0.35mm [416F24022IKR]; 178-1912
by CTS
0₫
Mã kho: 1781912
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 24MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 8pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 1.6mm |
| Width | 1.2mm |
| Height | 0.35mm |
| Dimensions | 1.6 x 1.2 x 0.35mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±20ppm |
| Series Resistance | 120Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
