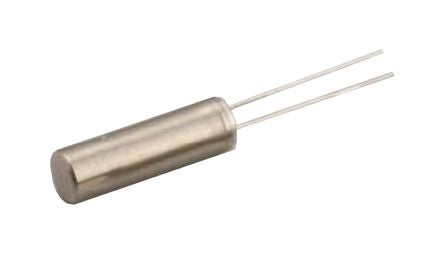

Citizen 32.76kHz Crystal Unit 2-Pin 1.5 Dia. x 5mm [CFS-14532768DZFB]; 184-9626
0₫
Mã kho: 1849626
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.76kHz |
| Mounting Type | Through Hole |
| Load Capacitance | 12.5 |
| Pin Count | 2 |
| Height | 5mm |
| Dimensions | 1.5 Dia. x 5mm |
| Frequency Tolerance | ±20ppm |
| Series Resistance | 40kΩ |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
