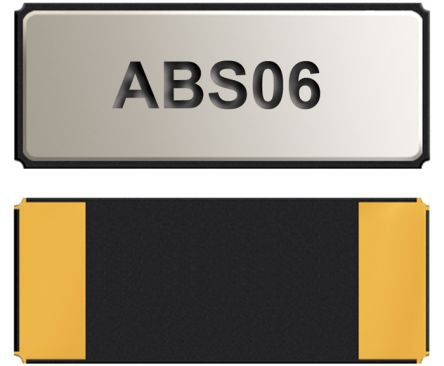

Abracon 32.768kHz Crystal Unit ±20ppm SMD 2-Pin 2 x 1.2 x 0.6mm [ABS06-107-32.768KHZ-T]; 171-2847
by Abracon
0₫
Mã kho: 1712847
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 4.1pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 2mm |
| Width | 1.2mm |
| Height | 0.6mm |
| Dimensions | 2 x 1.2 x 0.6mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±250ppm |
| Series Resistance | 80kΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
