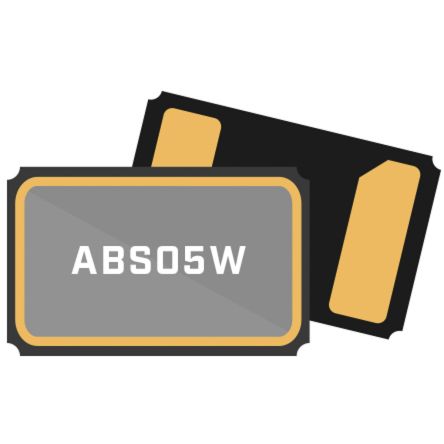

Abracon 32.768kHz Crystal Unit ±20ppm SMD 2-Pin 1.6 x 1 x 0.5mm [ABS05W-32.768kHz-K-2-T]; 174-1838
by Abracon
0₫
Mã kho: 1741838
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.768kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 4pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 1.6mm |
| Width | 1mm |
| Height | 0.5mm |
| Dimensions | 1.6 x 1 x 0.5mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | 1ppm |
| Series Resistance | 85kΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 125°C |
