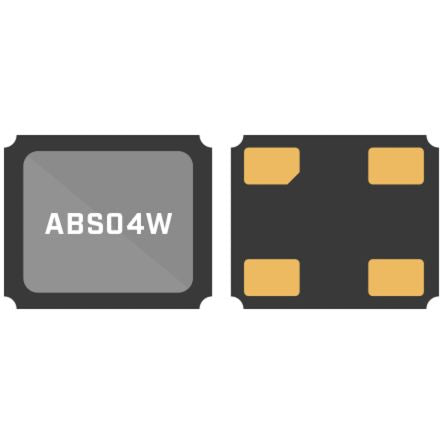

Abracon 32.76kHz Crystal Unit SMD 4-Pin 1.2 x 1 x 0.35mm [ABS04W-32.768KHZ-6-B2-T5]; 180-7833
by Abracon
0₫
Mã kho: 1807833
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32.76kHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 4pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 1.2mm |
| Width | 1mm |
| Height | 0.35mm |
| Dimensions | 1.2 x 1 x 0.35mm |
| Frequency Tolerance | ±10ppm |
| Frequency Stability | 1ppm |
| Series Resistance | 130kΩ |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
