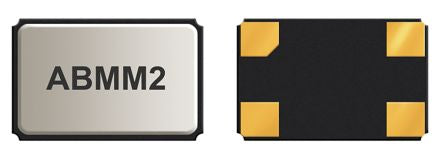

Abracon 7.3728MHz Crystal Unit ±20ppm SMD 4-Pin 6 x 3.6 x 1.2mm [ABMM2-7.3728MHZ-E2-T]; 171-2788
by Abracon
0₫
Mã kho: 1712788
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 7.3728MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 6mm |
| Width | 3.6mm |
| Height | 1.2mm |
| Dimensions | 6 x 3.6 x 1.2mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±20ppm |
| Series Resistance | 150Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
