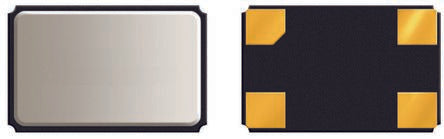

Abracon 20MHz Crystal ±20ppm SMD 4-Pin 6 x 3.6 x 1.2mm [ABMM2-20.000MHz-E2]; 703-1916
by Abracon
0₫
Mã kho: 7031916
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Standard Frequency | 20MHz |
Mounting Type | Surface Mount |
Load Capacitance | 18pF |
Package Type | SMD |
Pin Count | 4 |
Length | 6mm |
Width | 3.6mm |
Height | 1.2mm |
Dimensions | 6 x 3.6 x 1.2mm |
Frequency Tolerance | ±20ppm |
Frequency Stability | ±20ppm |
Series Resistance | 50Ω |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | 70°C |
