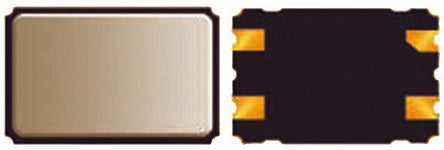

Abracon 12MHz Crystal ±20ppm SMD 4-Pin 7 x 5 x 1.3mm [ABMM-12.000MHz-B2]; 703-1852
by Abracon
0₫
Mã kho: 7031852
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 12MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 7mm |
| Width | 5mm |
| Height | 1.3mm |
| Dimensions | 7 x 5 x 1.3mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±50ppm |
| Series Resistance | 50Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
