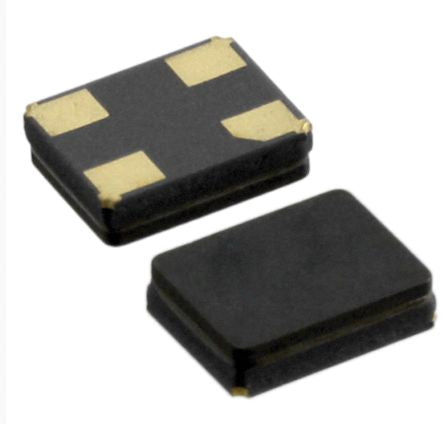

Abracon 25MHz Crystal Unit ±30ppm SMD 4-Pin 3.2 x 2.5 x 1mm [ABM8G-25.000MHZ-4Y-T3]; 171-2275
by Abracon
0₫
Mã kho: 1712275
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 25MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 10pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 3.2mm |
| Width | 2.5mm |
| Height | 1mm |
| Dimensions | 3.2 x 2.5 x 1mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±30ppm |
| Series Resistance | 60Ω |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | 60°C |
