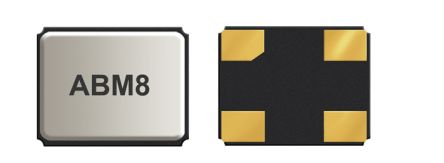

CRYSTAL Ultraminiature 32.0000MHZ 9PF SM [ABM8-32.000MHz-9-D1G-T]; 187-5734
by Abracon
0₫
Mã kho: 1875734
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 32MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 9pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 3.2mm |
| Width | 2.5mm |
| Height | 0.8mm |
| Dimensions | 3.2 x 2.5 x 0.8mm |
| Frequency Tolerance | ±10ppm |
| Frequency Stability | ±15ppm |
| Series Resistance | 40Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
