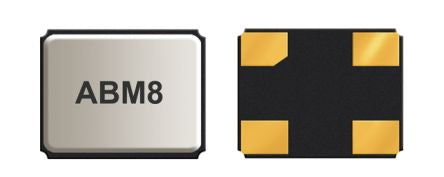

Abracon 114.285MHz Crystal Unit ±20ppm SMD 4-Pin 3.2 x 2.5 x 0.75mm [ABM8-166-114.285MHZ-T2]; 171-2823
by Abracon
0₫
Mã kho: 1712823
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 114.285MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 3.2mm |
| Width | 2.5mm |
| Height | 0.75mm |
| Dimensions | 3.2 x 2.5 x 0.75mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±20ppm |
| Series Resistance | 62Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
