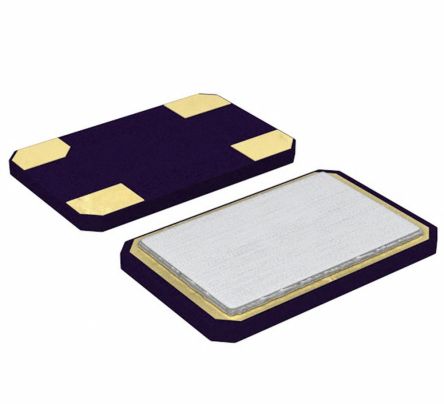

Abracon 25MHz Crystal ±20ppm SMD 5 x 3 x 1.1mm [ABM3B-25.000MHZ-B2-T]; 171-0631
by Abracon
0₫
Mã kho: 1710631
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 25MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Length | 5mm |
| Width | 3.2mm |
| Height | 1.1mm |
| Dimensions | 5 x 3 x 1.1mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | ±50ppm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
