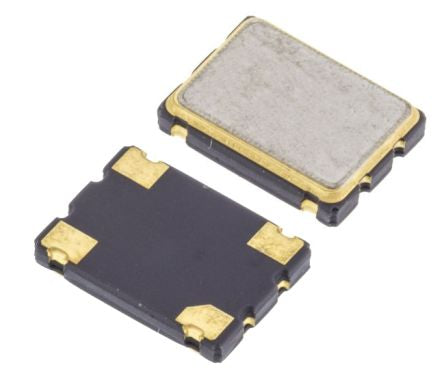

Abracon 37.4MHz Crystal Unit SMD 4-Pin 1.2 x 1 x 0.33mm [ABM13W-37.4000MHZ-5-NH7U-T5]; 180-7764
by Abracon
0₫
Mã kho: 1807764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 37.4MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 5pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 1.2mm |
| Width | 1mm |
| Height | 0.33mm |
| Dimensions | 1.2 x 1 x 0.33mm |
| Frequency Tolerance | ±7ppm |
| Frequency Stability | ±10ppm |
| Series Resistance | 50Ω |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | 85°C |
